Box Culverts

Various JIG Systems can be used to assemble a Box Culvert, as a whole or as sub-assemblies. Due to the differences in size and shape, SKEW can propose a solution based on your Box Culvert Element range.

Feel free to send us your drawings. The SKEW Engineers will then contact you with details of the optimal reinforcement assembly solution for your Box Culverts.

Contact us

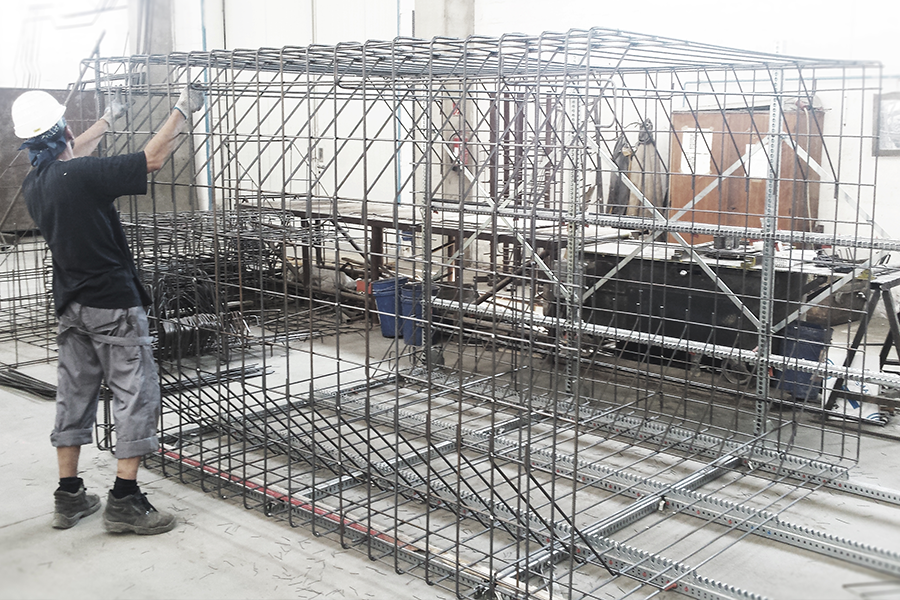

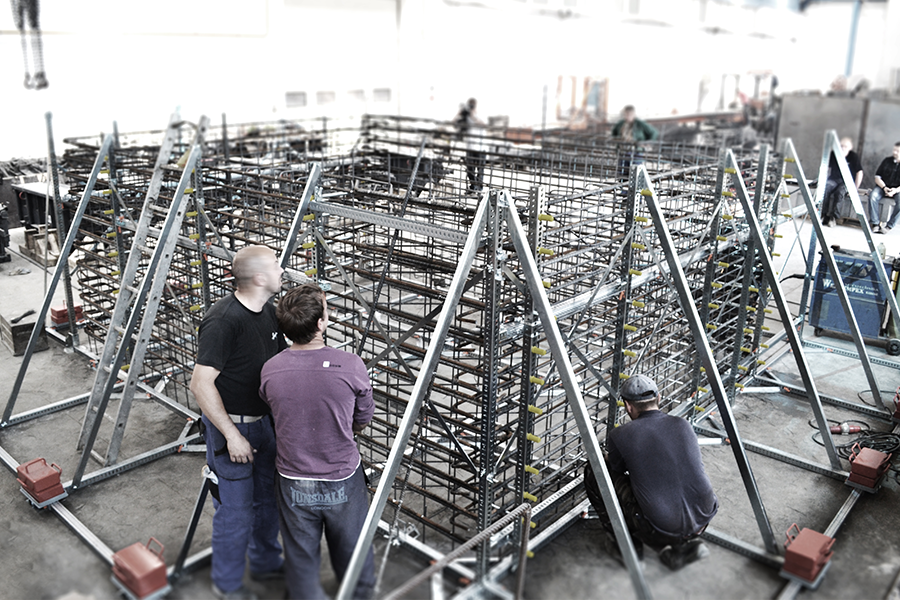

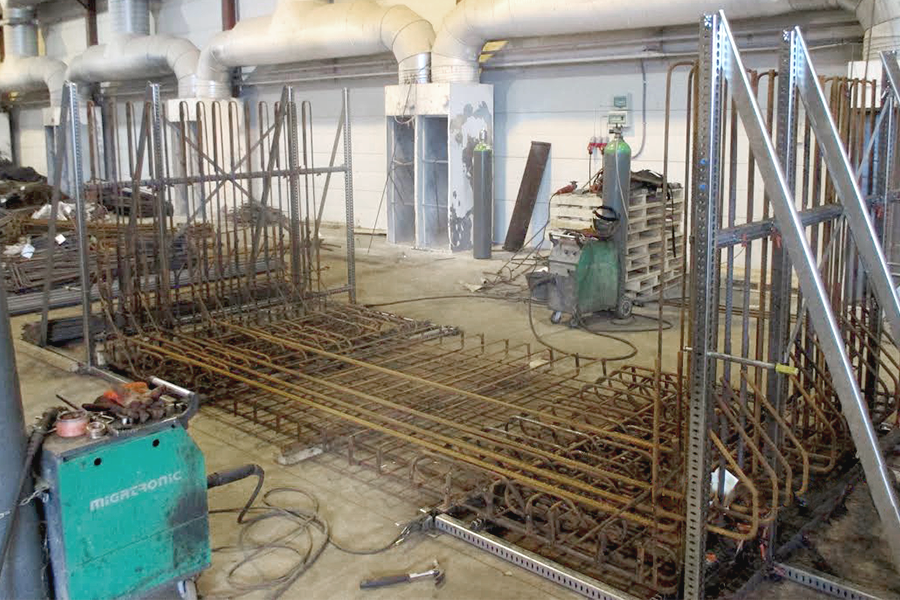

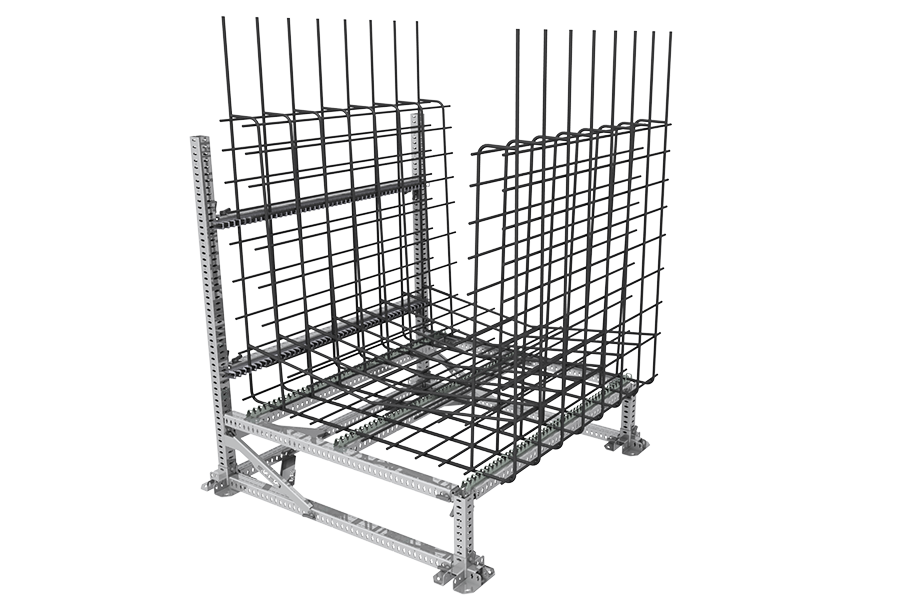

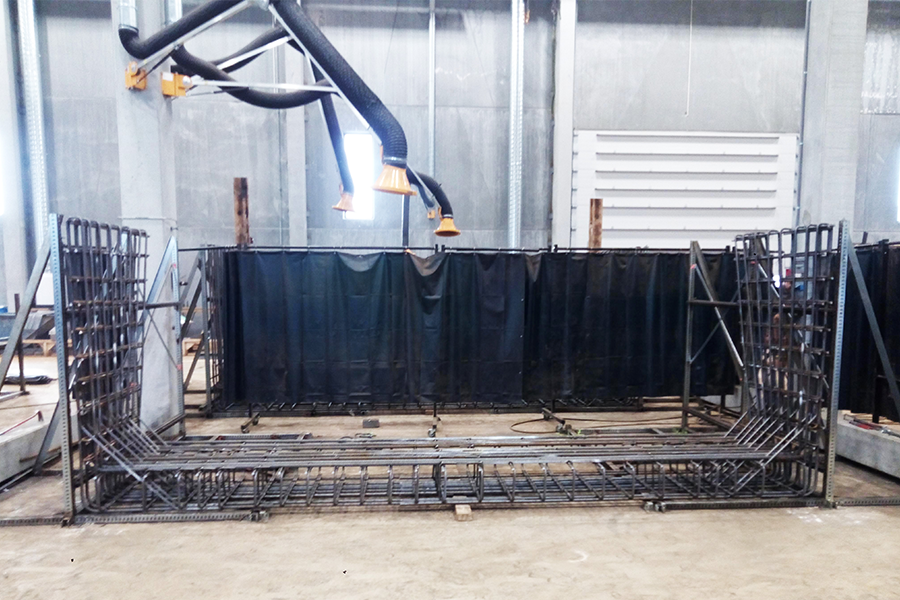

Examples of Culvert Assembly on the SKEW JIG SYSTEM

For any culvert, the overall shape of the reinforcement cage is critical for ensuring the final concrete element has the specified dimensions and fits correctly into the formwork, especially for complex or large-section culverts. The SKEW JIG System’s grips and modular nature guarantee that all stirrups and bars are positioned with perfect spacing and consistent alignment. This consistency is vital for maintaining the required concrete cover around the steel rebar.

Cta image

Let's design your reinforcement assembly workbench

Reach out to SKEW

Florijnweg 7
6883 JN Velp
+31 (0)571 260 115
info@skew.nl

Contact

Frequently asked questions

  • What makes the SKEW JIG SYSTEM fast?

    The SKEW JIG SYSTEM allows workers to position the reinforcement in exactly the right position, before fixing. The reinforcement is continuously held in place, making the entire assembly process more convenient and therefore faster. Thanks to the integrated markings, less time is spent on measurements, checks and repetitions. The standardized working method also ensures seamless teamwork.

  • Is the SKEW JIG SYSTEM available in my country?

    SKEW can supply worldwide. Our JIG Systems are flat packed, compact and light weight for international transport. We work with several transport agents for transport and your importing procedure.

  • How does the pricing work?

    Each JIG part has a price. The overall JIG System price is a total all components included. SKEW offers tailored Systems, packages, add-ons, extensions and loose components.

  • What is the grip spacing and the rebar diameter range?

    Standard, we have a spacing @25mm or 1 inch, suitable for diameter range 8-20mm (#2-#6). But SKEW offers alternative spacings (20, 50mm) or grips for smaller (6-8mm) and larger (up to 40mm) reinforcement diameters. Our sales team will assist on including the best grips for your projects.

  • What can I assemble on the SKEW JIG SYSTEM

    Our products allow for endless configurations of JIG systems so that a JIG solution can be customized for your needs. SKEW engineers can match your drawings with the SKEW JIG Systems library to provide the most suitable workbench for your products or project.
