SKEW Has developed a strong reinforcement JIG System specially for heavy mesh panels.
A unique adjustable JIG platform, designed to support the reinforcement in the desirable rebar diameters and spacing. The first and the second layer of reinforcement can be swapped, for optimal flexibility.
The SKEW Engineers can customize and enhance this JIG platform for your heavier reinforcement meshes. We can include splice areas, double bar gripping locations and supports for reinforcing bar couplers.
With a maximum load capacity of +500kg/m2, this JIG System is ideal for heavy bars ranging from diameter 16 to 40mm.
The Heavy Mesh JIG System is compatible with automated reinforcement welding or robotic welding. With an exact reinforcement placement thus a predetermined bar to bar location and an unique fixed “0-plane” between the first and second layer, the actual reinforcement bar position and coordinates are programmable or traceable.

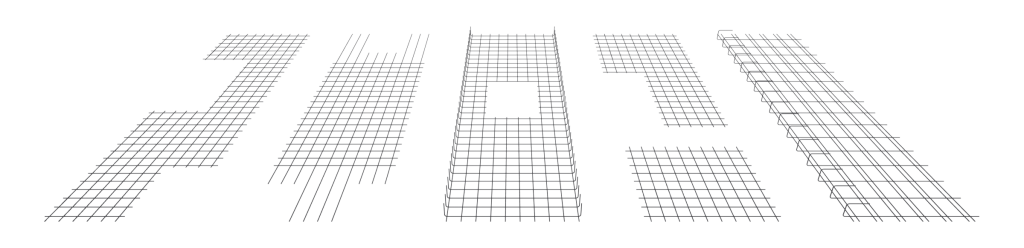

Examples:
The Heavy Mesh JIG System provides several benefits when welding heavy mesh panels, including increased speed and efficiency, improved weld quality, and enhanced safety. By holding the mesh securely and accurately in place, a JIG simplifies the welding process, allowing for faster and more consistent welds (or ties). This leads to reduced labor costs, minimized waste, and a stronger, more reliable reinforcement mesh panel.
The Heavy Mesh JIG System is constructed of modular sections and can be built in any desired size. Because it is module-based, the System can later be expanded, split or set up in other configurations. The interchangeable teeth profiles allow the JIG to position the bars in the desired position regardless of rebar diameter or spacings.
