The SKEW JIG System is highly effective for the assembly of Bridge Element reinforcement because it utilizes an adjustable, ergonomic framework that ensures precise spacing and alignment of reinforcement steel (rebar) for bridge beams.
This significantly accelerates the assembly process while reducing labor costs and improving overall structural safety and quality control.
Bridge Element Assembly Applications with SKEW JIG
Because bridge designs vary significantly, reinforcement requirements are unique to each project. However, whether you are assembling foundations (piles, pile caps, footings), substructures (piers, columns, pier caps, abutments), or superstructures (kerbs, parapets, beams, girders, slabs), the SKEW JIG System offers substantial assembly advantages
Beach Setup for Small to medium Bridge Beams, Parapeths and Columns. Our Flexibly platform can be tailored for your elements
Heavy Duty JIG System for large and heavy reinforcements. Heavy columns, large bridge reinforcements and heavier beams.

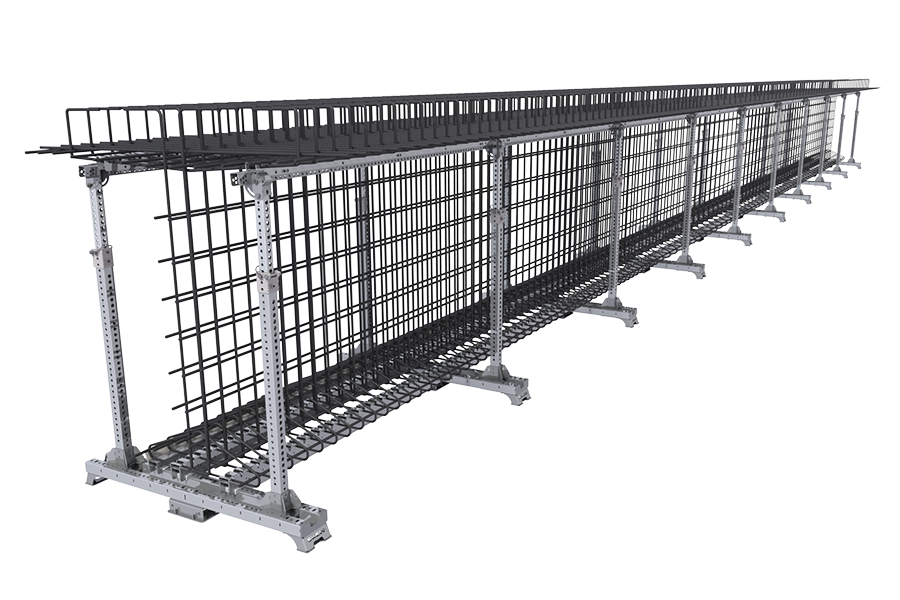

Prestressed Beam JIG System for the T-beam reinforcement and other long, (prestressed) reinforcement types. Flexibly and adaptable.
A JIG System for your project
The SKEW JIG System streamlines bridge beam fabrication by replacing tedious manual layouts with an adjustable, ergonomic framework that accelerates production timelines by up to 70%.
For serial production, its modular design allows teams to pre-assemble rebar cages offline, keeping casting molds continuously active and easily adapting to various beam shapes or skewed angles. It guarantees machine-grade precision by locking stirrups into perfect alignment, which secures the exact concrete cover required for strict infrastructure standards. Ultimately, this industrialized approach reduces labor costs, minimizes manufacturing errors, and significantly improves safety in precast yards.
Ready to see how our JIG System can streamline your next project? Send over your reinforcement drawings today, and our engineering team will analyze your configurations to propose the perfect custom assembly solution.
